Smart Switch Module Sensor Motion Detector Finger Hand Sweep Sensor DC 12V 24V 3A Maximum 36W Power Light Switches
Regular price €27,29 Sale price €7,29SPECIFICATIONS
Brand Name: ammtoo
Camera Equipped: No
Choice: yes
Communication method: Other
Compatibility: others
High-concerned chemical: None
Model Number: Smart Switch Module
Origin: Mainland China
State of Assembly: Almost Ready

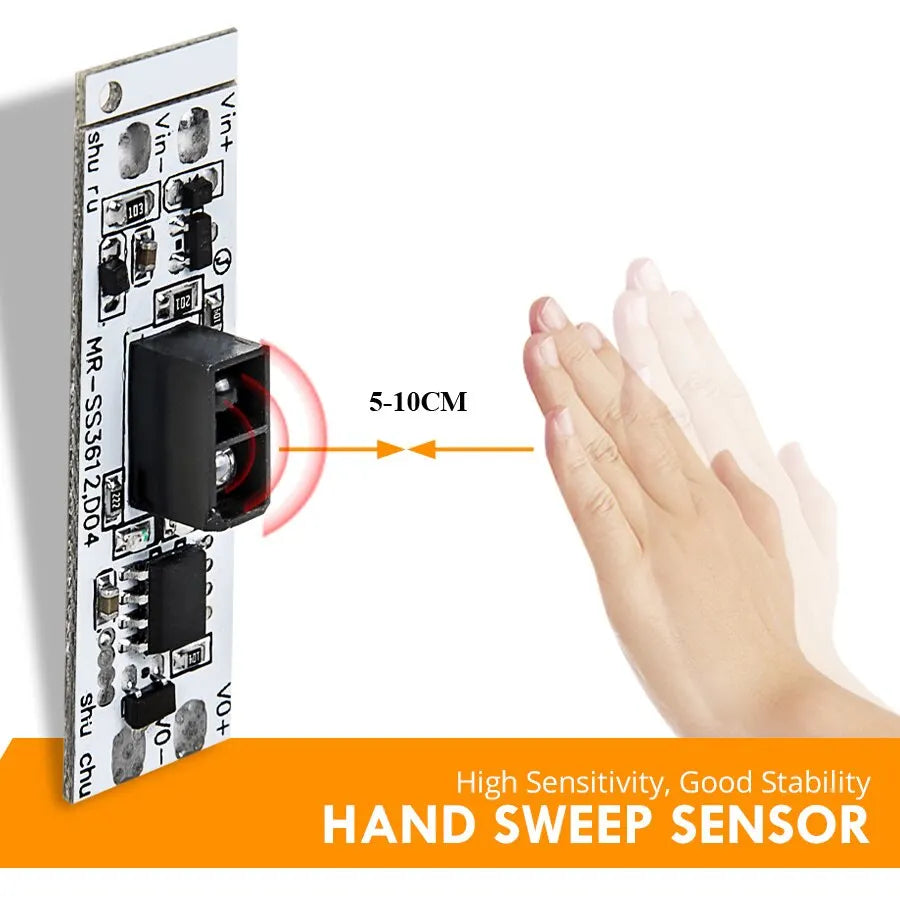

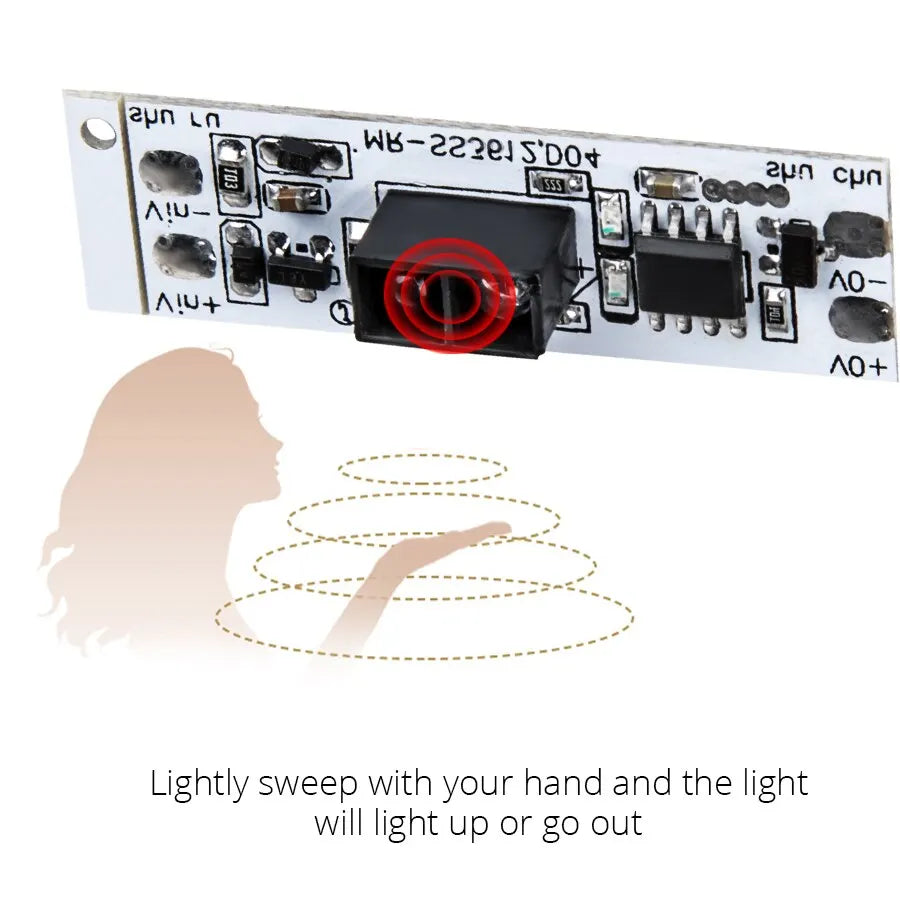

• Motion Detector :The smart switch module comes with a motion detector that can detect hand movements and sweeps, making it easy to turn on and off your lights or other devices without having to touch them.
• Maximum Power Consumption :With a maximum power consumption of 36W, this smart switch module can handle high-power devices like air conditioners and heaters without any issues.
• Multiple Voltage Support :This smart switch module can support both DC 12V and 24V, making it compatible with a wide range of devices and applications.
• Almost Ready to Use :The smart switch module is almost ready to use, with only minor assembly required. This means you can start using it right away without any complicated setup or installation process.
Package Included:
1* Switch Module

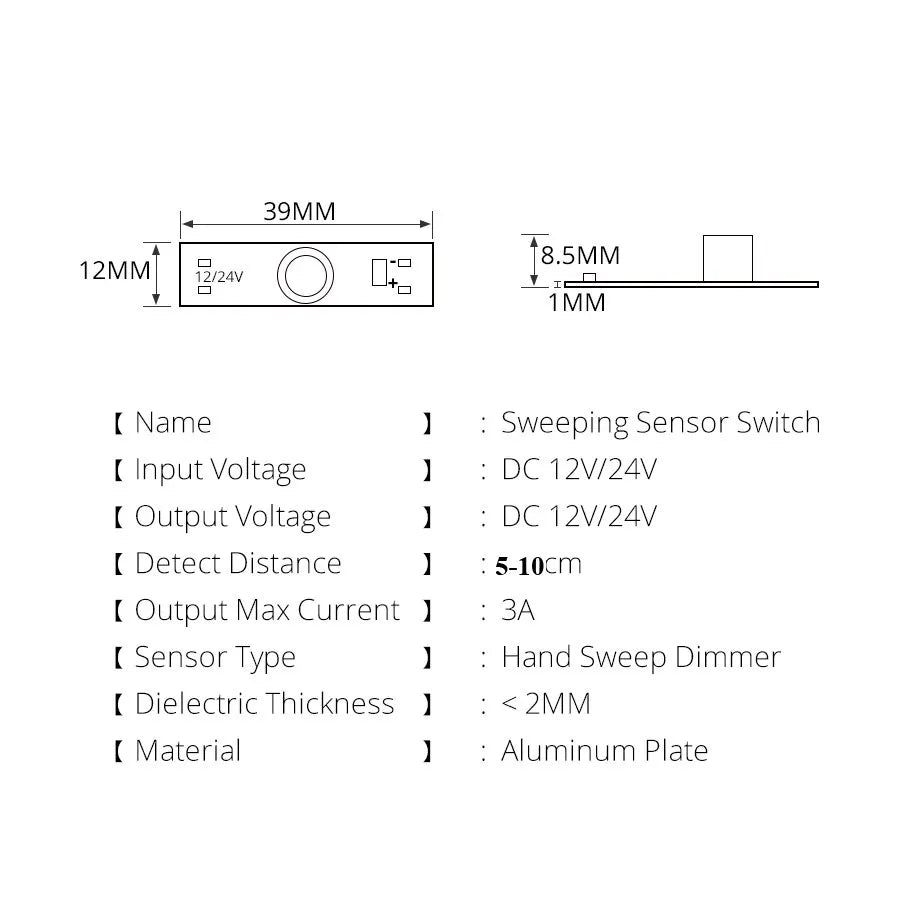

Specifications:

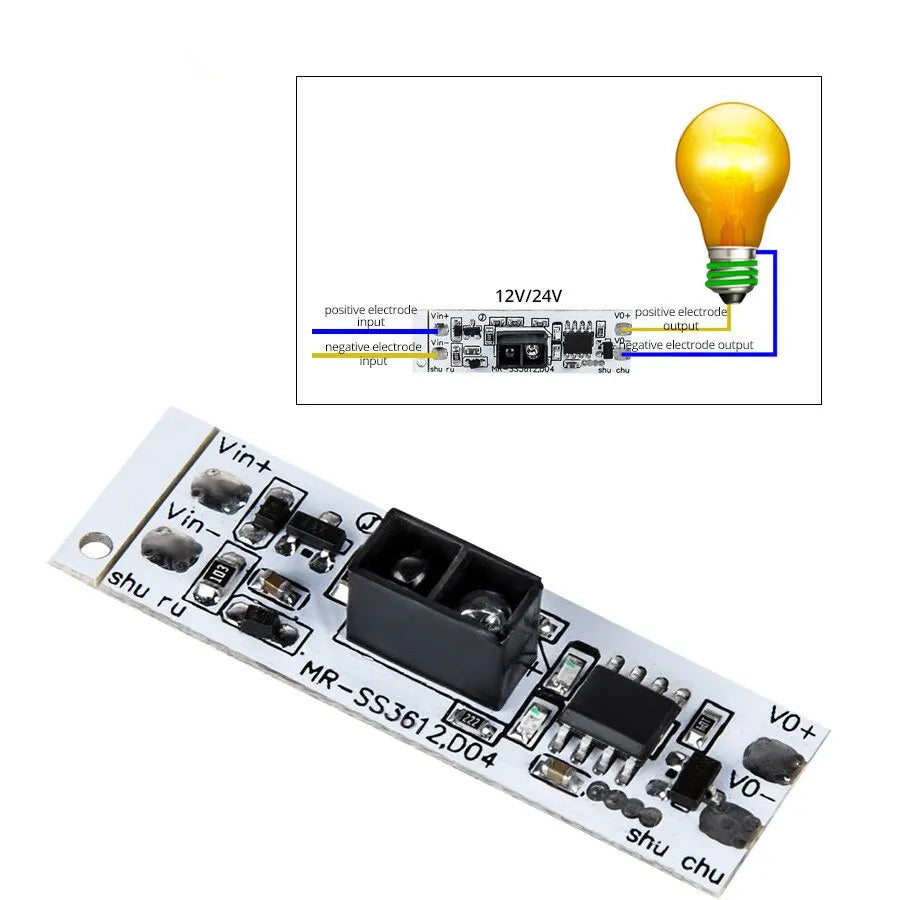

Operating voltage:
Input: 12V 24V
output: 12V 24V
Output type: double output
Detection range: 5-10 CM
Detection principle: distance
Power load: 36 W
Delayed off time: none
Field of application: DC, constant pressure
Load current: 3A optional
Standby current: 10mA
Features:
The use of electrical appliances, such as small household appliances, KTV VOD system,
Automotive industrial application systems and other electrical devices wide range of guests can accept custom special features;
The sensitivity of the product can be customized, can penetrate plastic, acrylic, glass, ceramic, and other non-metallic medium, stable performance!
Instructions:
AC use: Need to apply reactive rectifier for it is DC, constant pressure.
During installation, make sure that the medium insulation and tactile surface are tightly coupled and fixed!
There shoule no gap! Installed and then power, wait 3 seconds after initialization, it may be normal operation!
